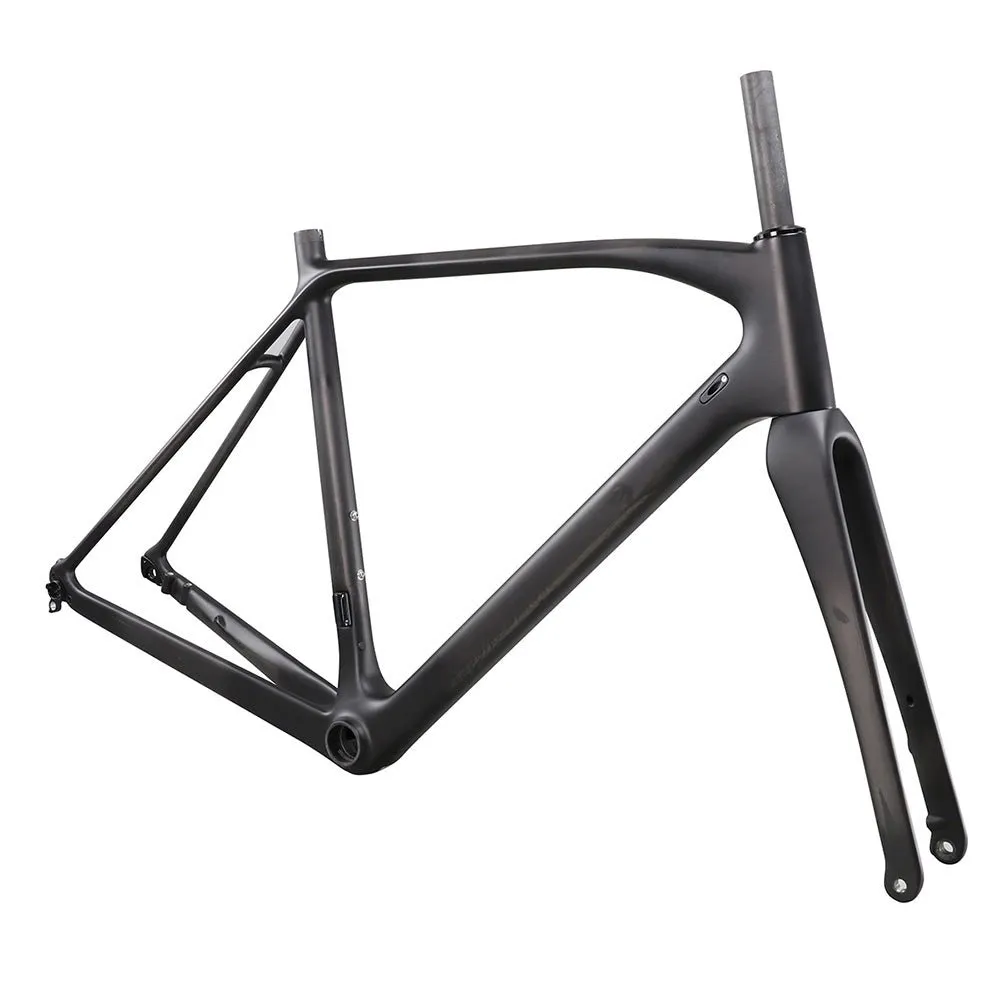

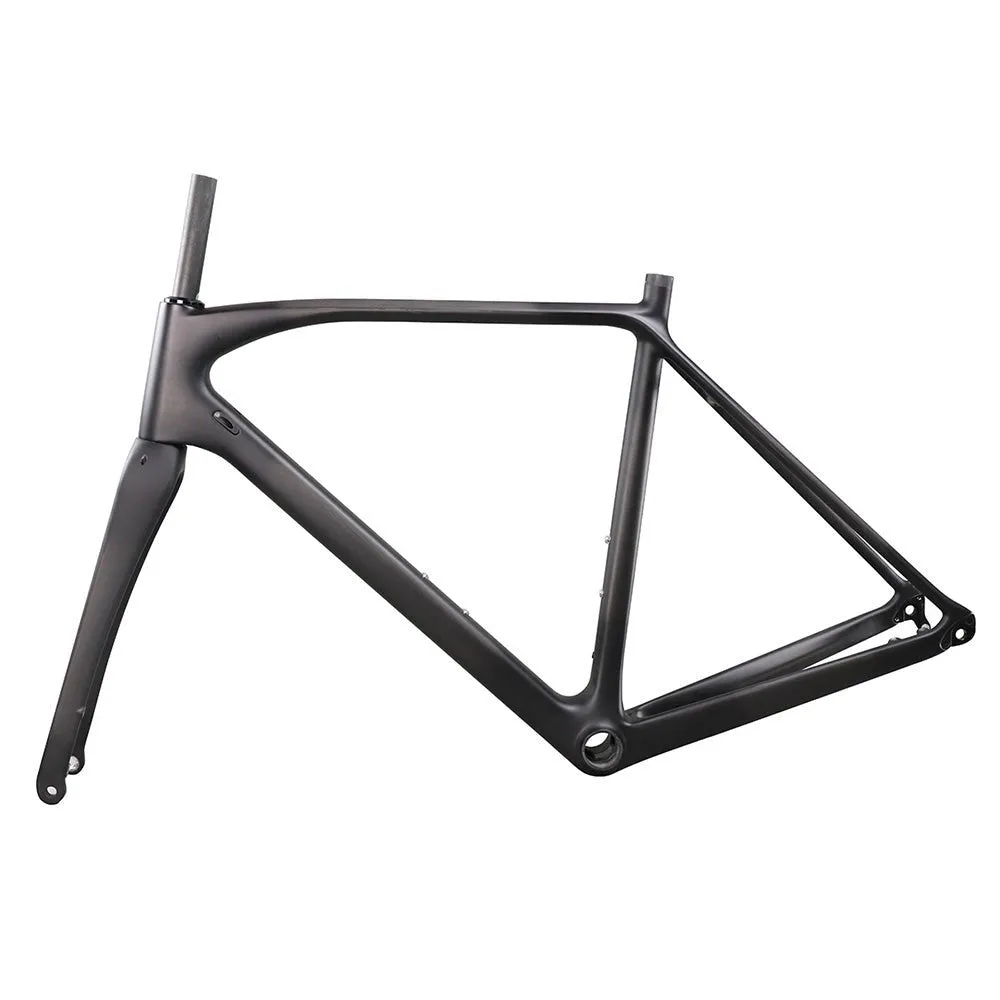

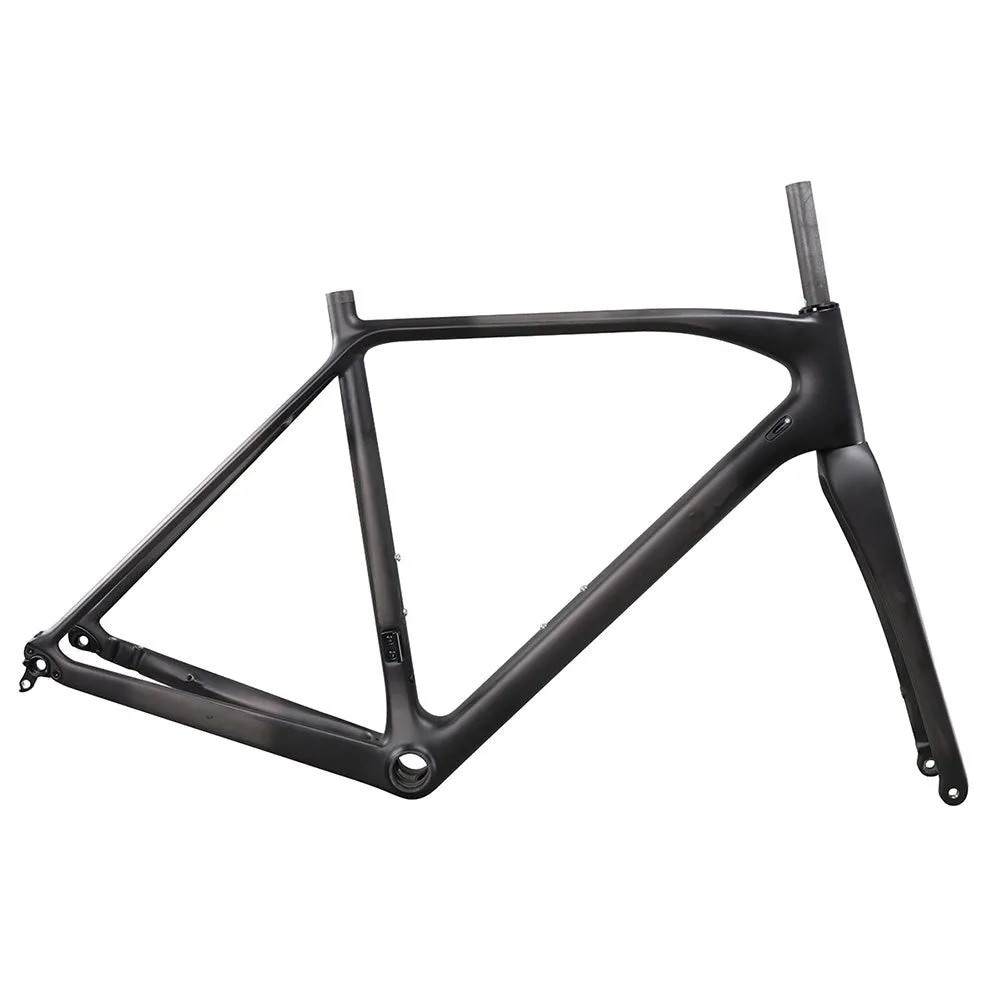

Fancy racing cyclocross? The AC388 is for you then. This Toray T700 carbon fiber cyclocross frame will help you destroy your local cyclocross races and double up as a great chain gang bike during the summer. It is a cyclocross frame that is so good you won't just be using it during winter.
Being a cross race bike, we have made sure that the AC388 can deal with slowing down as well as speeding up. To that end, you will find this flat mount disc brake frame can accommodate 160mm rotors on the front and 140mm rotors on the rear. Knowing how to use your brakes can win you a cross race.

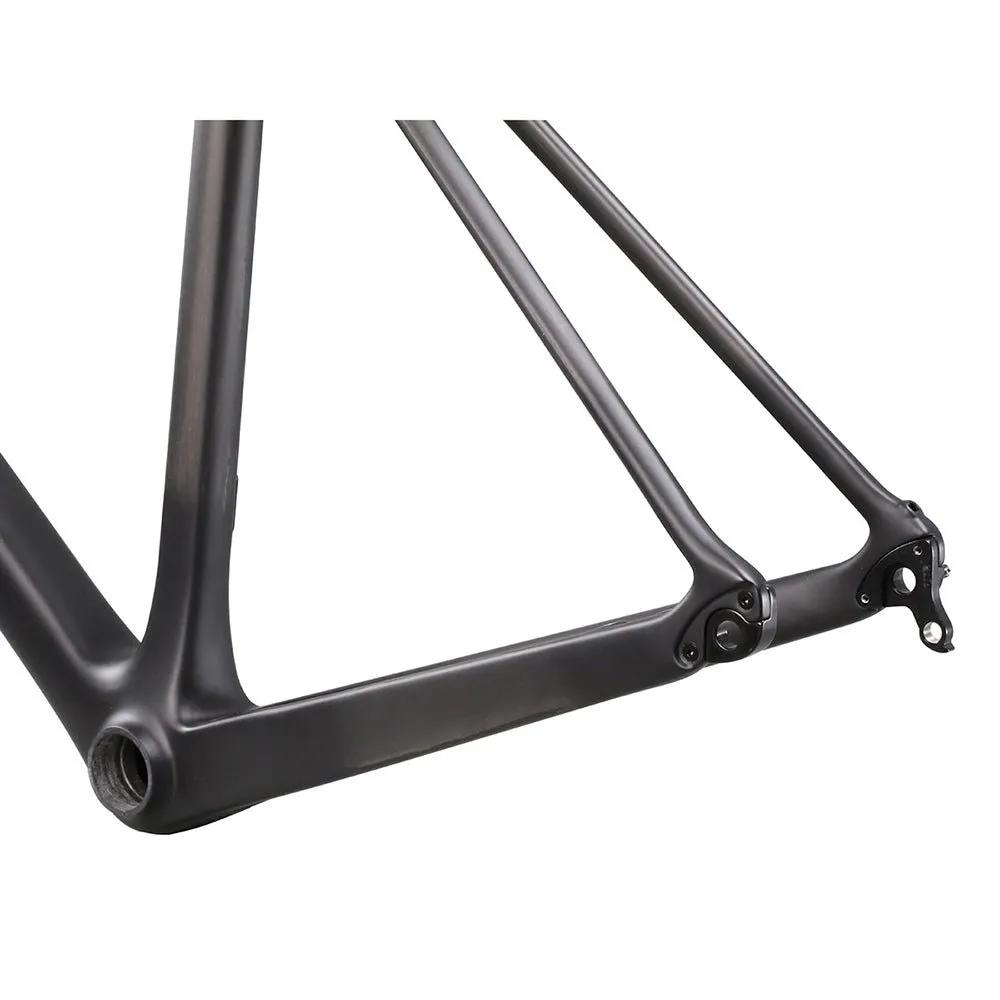

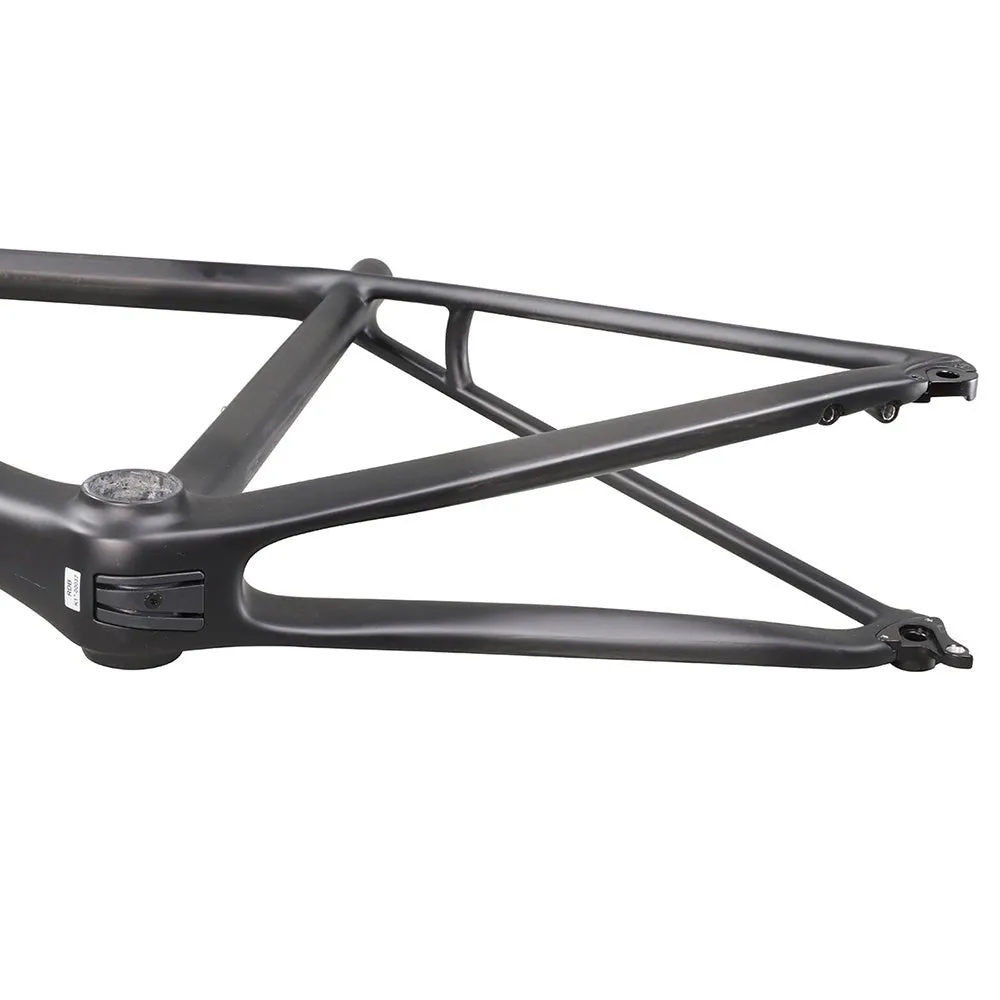

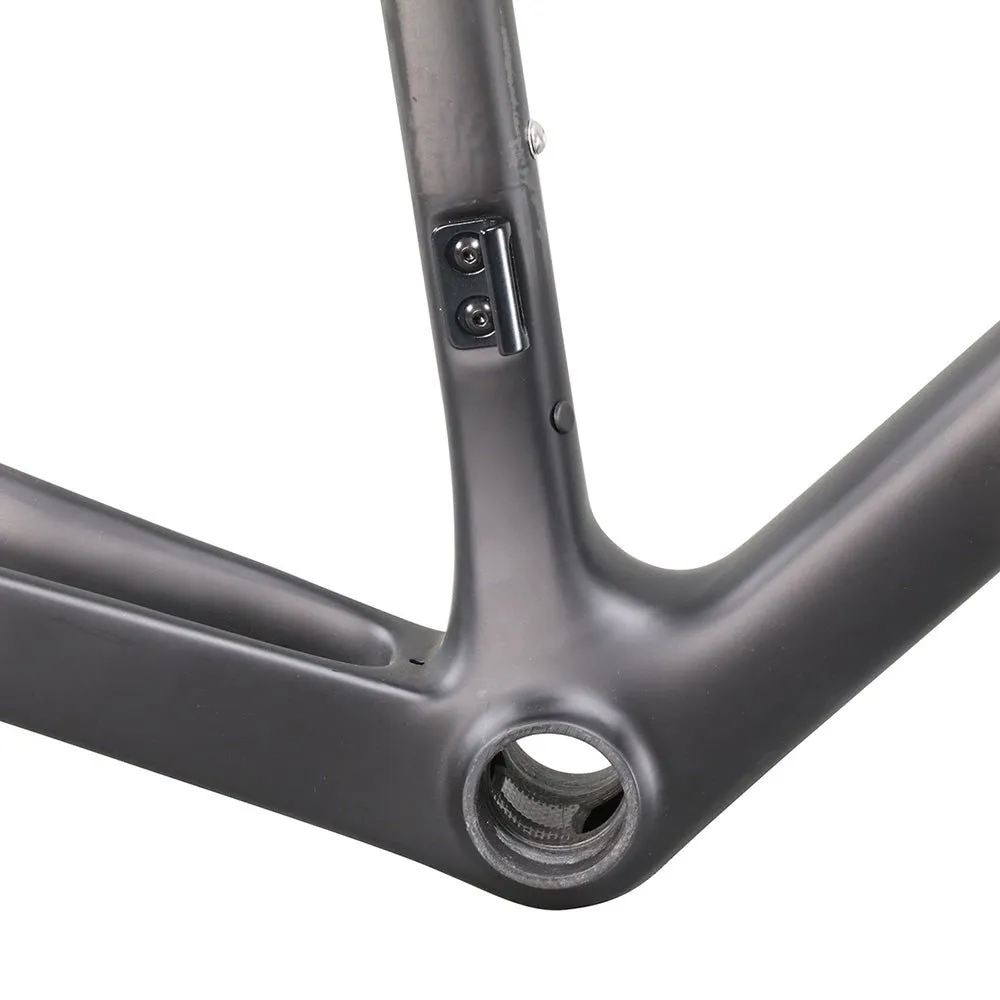

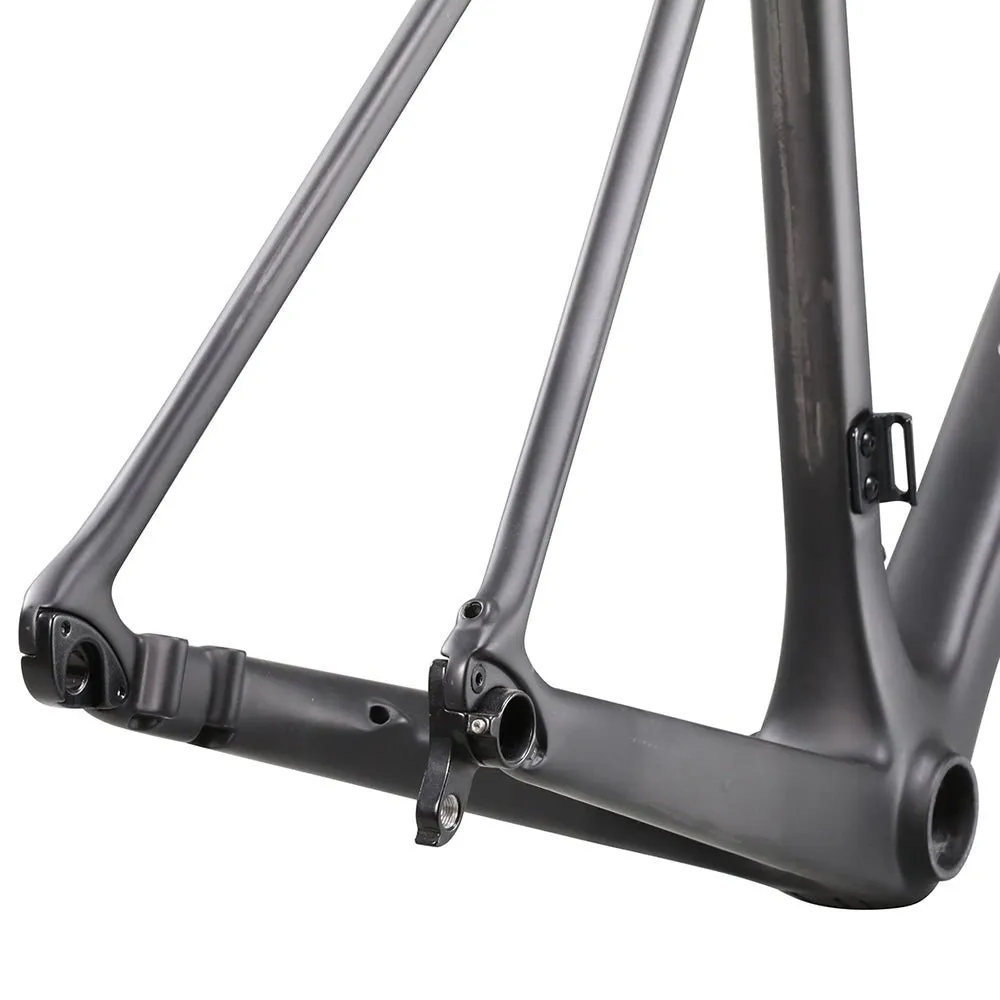

When you need to put the power down, we have equipped this frame with an oversized BB86 bottom bracket shell. Couple this with a rear thru axle, you can also run a standard QR by changing the dropouts, and you know your back wheel will be receiving all of your power, great when you have to rely on your torque to overcome muddy fields.
If you have to shoulder the bike we have maximized the front triangle space to make it as simple as possible for you. Our shoulder friendly top tube will fit nice and snug as you run up those stairs carrying your bike.

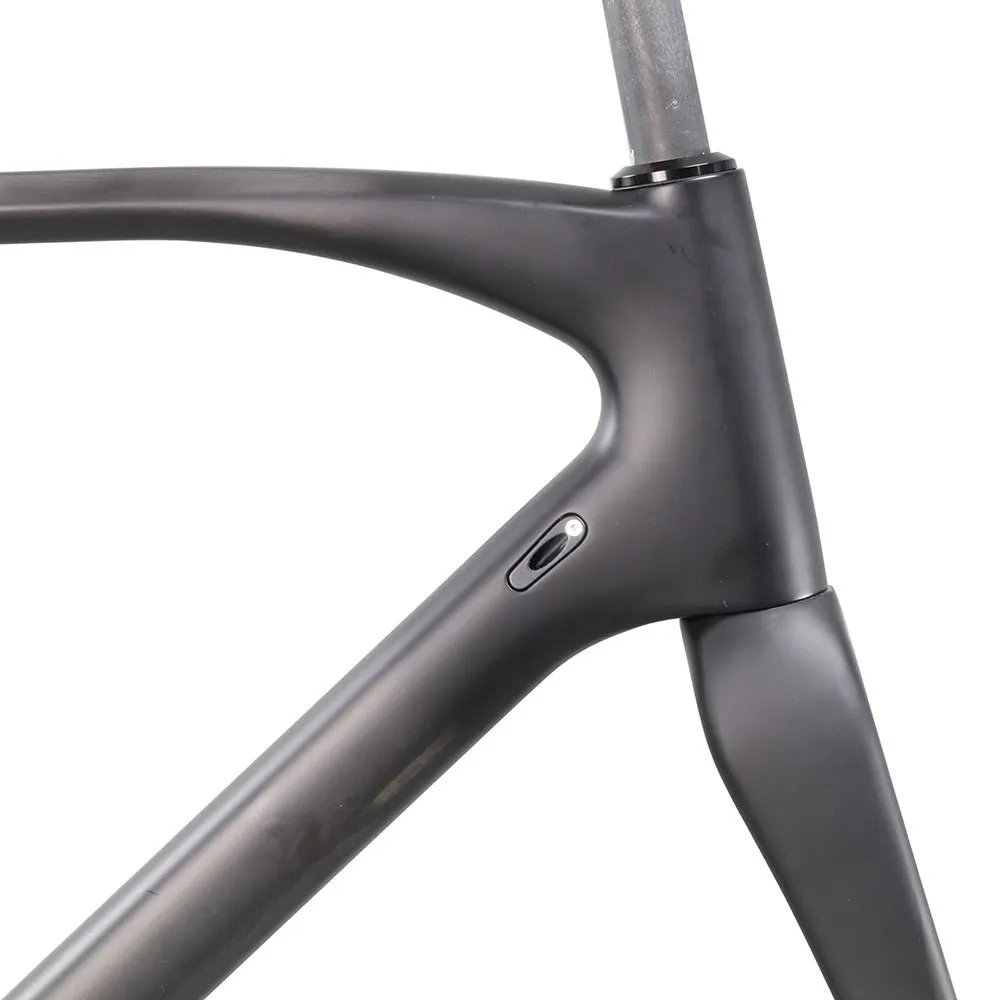

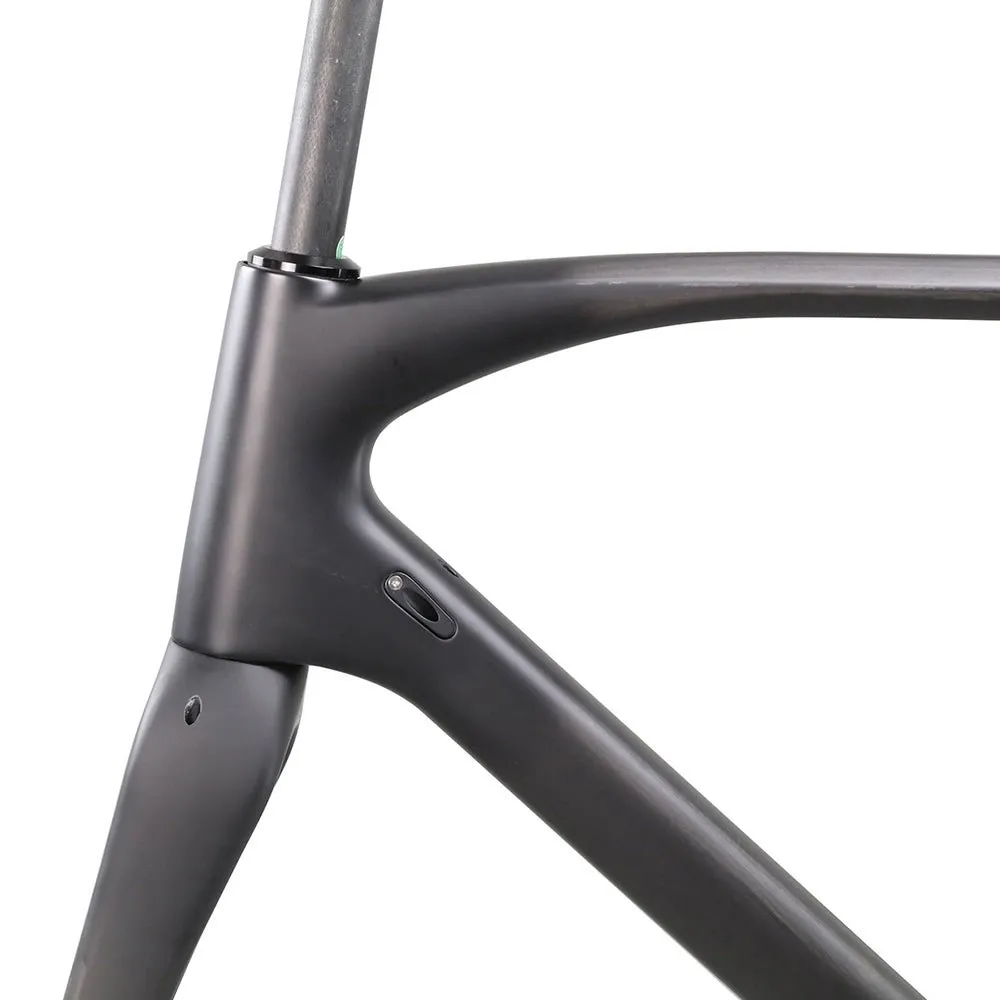

Our internal routing will help to keep your cables and hoses out of the worst of the weather and fully functional for your race. Our routing though is designed to be user-friendly so do not fear when you are building your new frame up.
On the AC388 you will never have spent a more fun hour in a freezing cold, muddy field.
Model | AC388 |
Type | Cyclocross Bike Frame |
Material | Carbon Fiber Toray T700 |
Weave | Glossy |
Weight | Frame: 1130g ; Fork: 475g (51cm) |

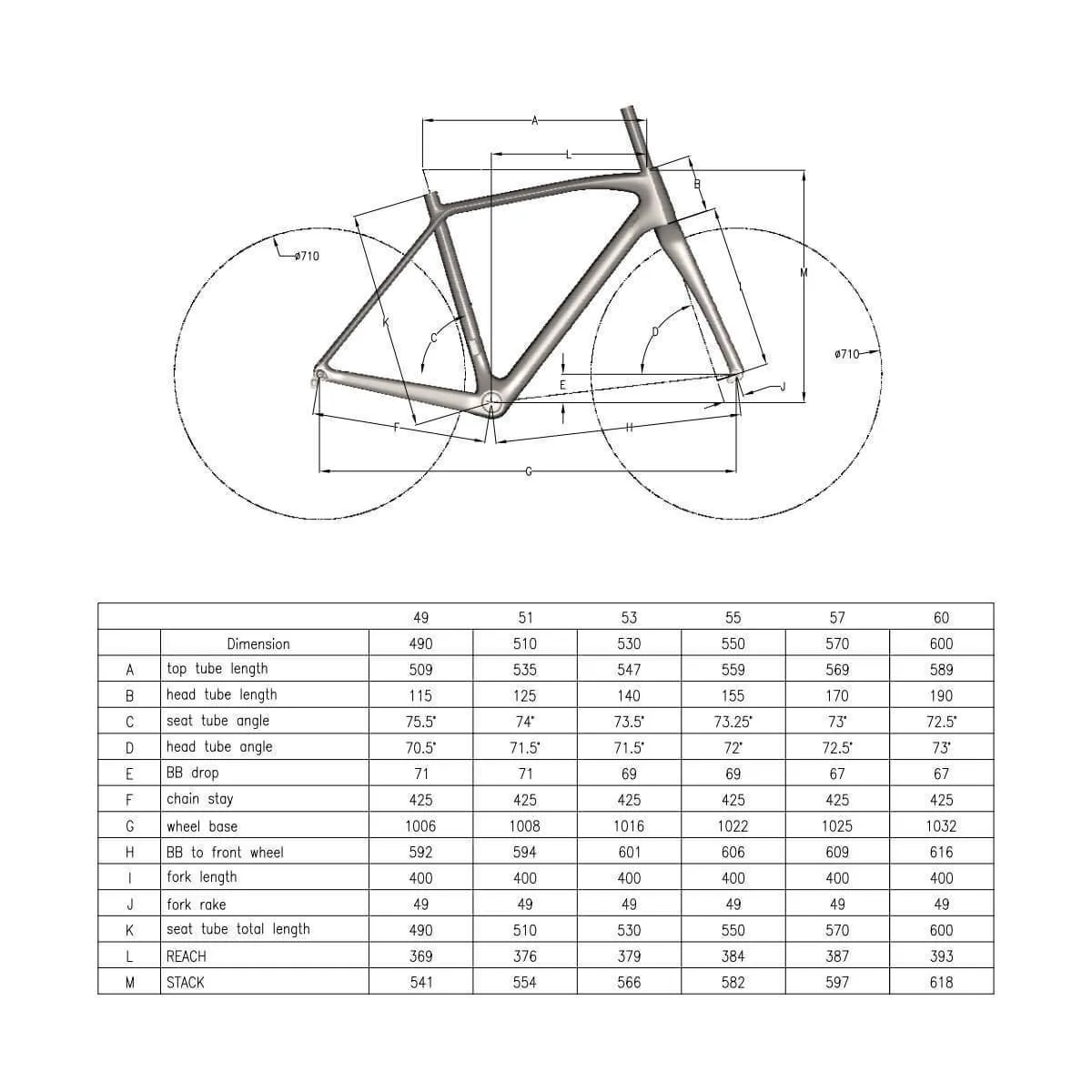

Available Size | 49 / 51 / 53 / 55 / 57 / 60cm |
BB | BB86 |
Headset Size | Top 1-1/8", Down 1-1/2" |
Fork End | 12 x 100mm |
Front and Rear | Flat Mount Shimano, 160/140mm |
Seat Post Size | 27.2 mm |
Tire Size | 700C x 28-38mm |
Package Included | 1 x Frame 1 x Fork |
